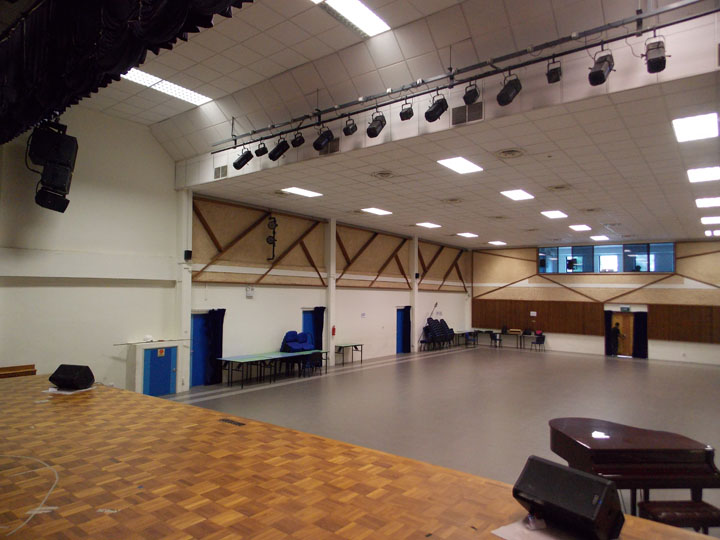

CEL's role was to assess their current equipment and to propose a totally new Audio Visual & Lighting System to replace the current system. CEL worked closely with the Management Team & Committee of Siglap South CC to understand their requirements for the smooth running of the AV System for this Hall to be an International Standard Performance Arts Centre for top notched acts & performances.

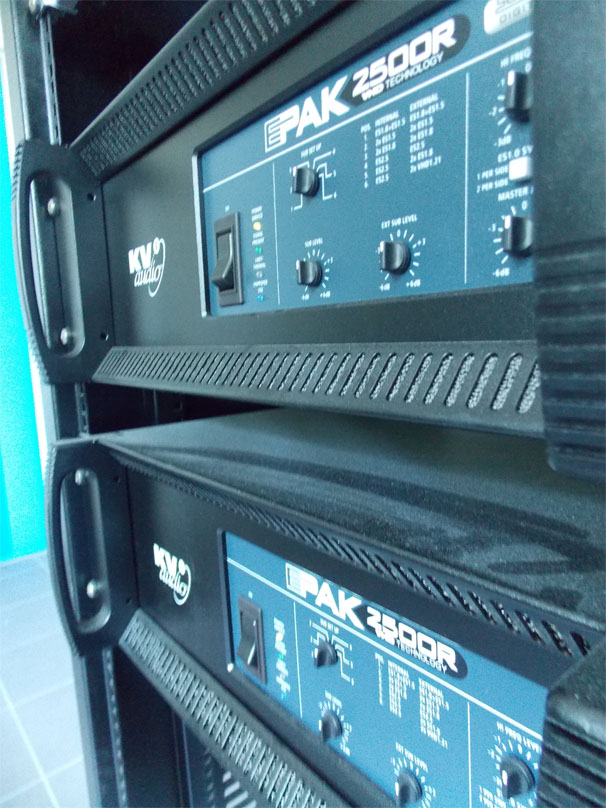

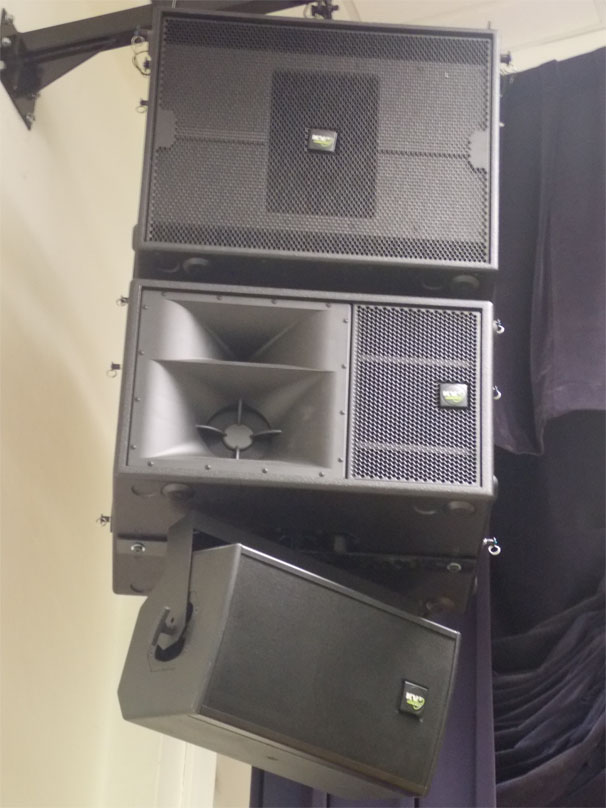

The main sound system for the stage comprises of a left right composition of KV2Audio speakers that were hung from the ceiling. Each side features a KV2 AudioESD10 10” passive 2-Way speaker driven by a QSC GX5 power amplifier with a KV2Audio ES1.0.3-Way Tri-Amp passive speaker and a KV2 Audio ES2.5 Dual 15”acoustic loaded sub-woofer that are both driven by a KV2 Audio EPAK2500R 4channel power amplifier.
The KV2 ES1.0, ESD10 and ES2.5 combine well to offer exceptional output, clarity and performance be it for speech reinforcement,band performance, musical and dance performances. The speakers are very powerful and normally cater to a much higher capacity than what the Hall is able to accommodate. The system actually only uses 25% of its capability.

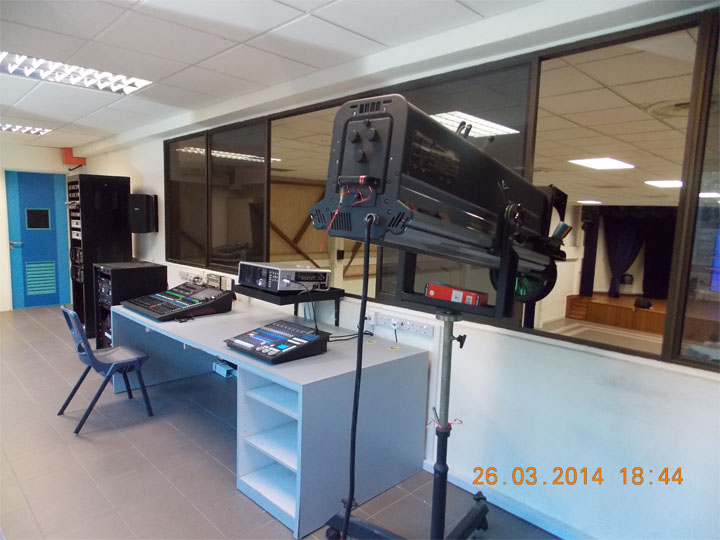

An Allen & Heath GLD80 digital mixing console is complemented with an A&H GLD AR84 Audio Rack which is installed in the control room and a GLD AR2412 Main Audio Rack installed at the stage.
The systems are elegant and highly professional. They have added the much needed auditory and visual excellence for the staging of performances by artistes of national and international repute. We are looking forward to the development of our SSCC Hall as a much sought after venue in theeast and the staging of major arts performances for the community “
Dr Uma Rajan,BBM, PBS,Vice Chairman, Siglap South CC Management Committee & Chairman, Community Arts & Culture Club,Joo Chiat
